Characteristics and applications

The small size of universal coupling: the connection of two different axis of the drive shaft, not cushioning and damping, the whole fork structure, fixed bearing without bolt, avoid fracture, loosen the bolts and prolong the service life, convenient maintenance, high reliability, large bearing capacity, high angle, can be in beta is less than or equal to 5 DEG 25 degrees under the conditions of work.

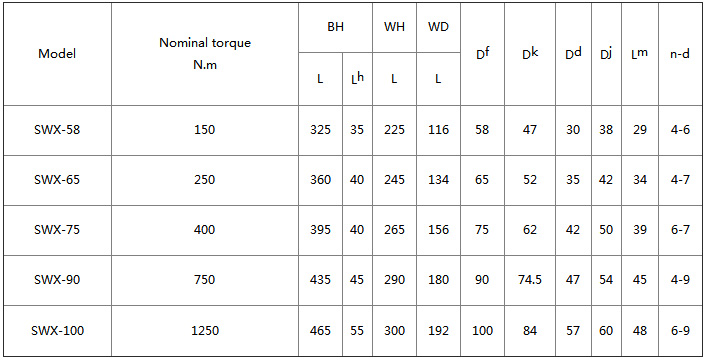

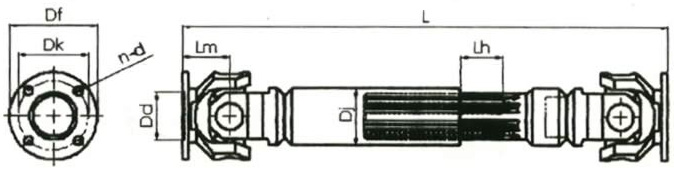

Small size universal coupling Basic Parameters And Main Dimensions　　　　　　mm
