Characteristics and applications
SWP-B universal coupling : the bearing is vulnerable. In order to facilitate the replacement of bearings, bearing cover made of split bolt connection, can work under the conditions of beta less than 5 -10 degrees. It is suitable for rolling machinery, lifting and transportation machinery, construction machinery, mining machinery, petroleum machinery and other heavy machinery, connecting two different axes of shafting transmission, and can not buffer or reduce vibration.

Related products

         A - telescopic long type;

         B - telescopic short type;

         C - non - telescopic short type;

         D - non - telescopic long type;

         E - telescopic double flange long type;

         F - large telescopic long type;

         ZG - straight through type

         FG - reverse through type

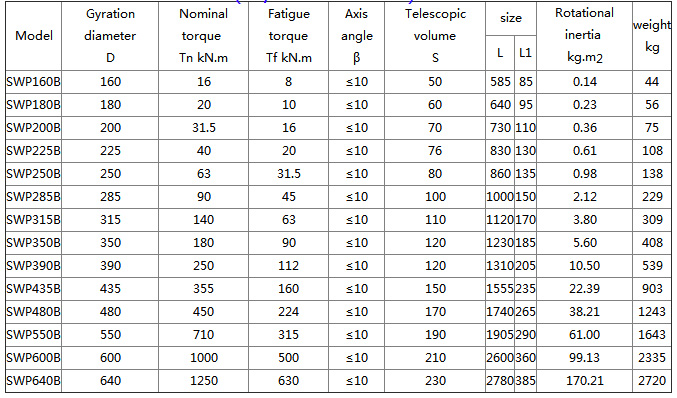

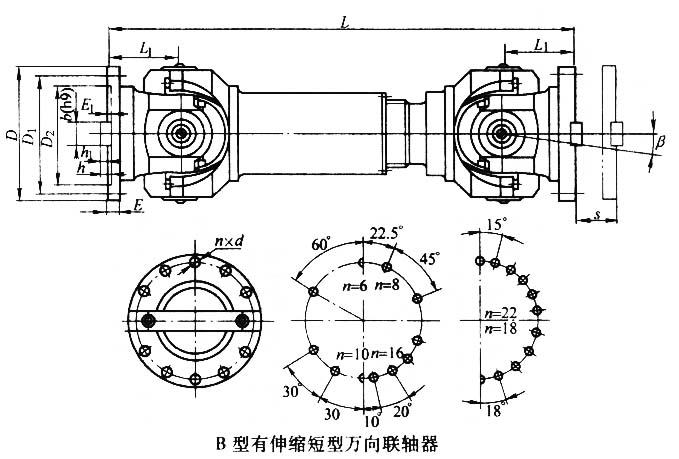

SWP-B telescopic short universal coupling Basic Parameters And Main Dimensions(JB/T 3241-2005) mm
